What are the main undercarriage components of an excavator and what are their functions?

Excavators are indispensable workhorses in construction, mining and many other heavy industries. Their ability to dig, lift and carry heavy objects efficiently relies heavily on the integrity and functionality of the undercarriage components. It is important for operators, maintenance personnel and industry enthusiasts to understand the main undercarriage components of an excavator and their functions. This knowledge will not only help to operate the excavator correctly, but also ensure its longevity and optimal performance.

Overview of Excavator Undercarriage Components

The undercarriage of an excavator is the foundation of the entire machine, providing stability, mobility and support for all other components. It is the connection between the superstructure (including the cab, engine and hydraulic system) and the ground. The undercarriage must be strong enough to withstand the heavy loads, vibrations and stresses generated during operation, while ensuring smooth movement over various terrains.
The undercarriage system is composed of multiple interconnected components, each with its own specific role. These components work together to ensure that the excavator can complete a variety of tasks efficiently. From traversing rugged construction sites to performing precise digging movements, the undercarriage components are the heroes behind it all.

Travel Gear Components

1. Track Assembly

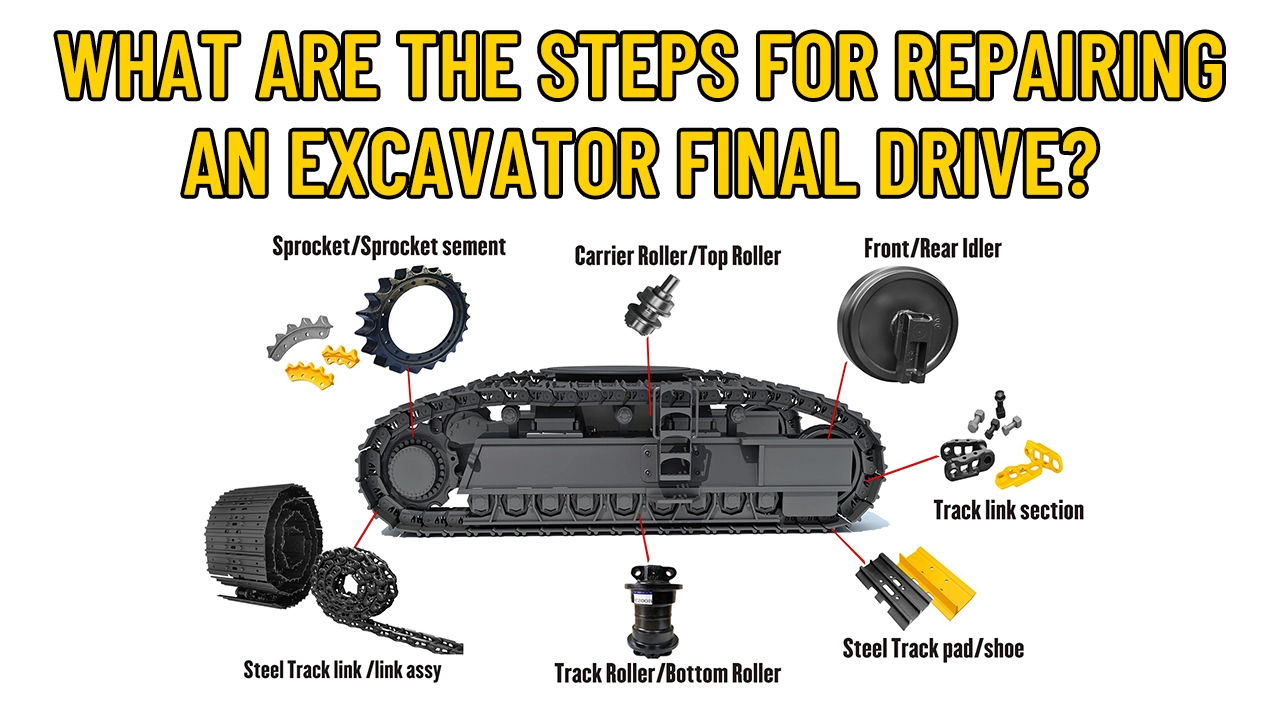

The track assembly is one of the most recognizable and critical components of an excavator travel gear. It consists of tracks, track links, track pins, and track shoes. The track is a continuous ring of metal that wraps around the drive sprocket, carrier sprockets, and track rollers. They provide the traction needed for the excavator to move forward, backward, and turn on a variety of ground surfaces, including soft soil, gravel, and rocky terrain.
Track links and track pins connect the various segments of the track to ensure its structural integrity. The track shoes increase the contact area with the ground, reduce ground pressure, and prevent the excavator from sinking. Track shoes also provide additional traction and stability when working on slippery or uneven ground.

2. Track Rollers and Track Rollers

The track rollers play an important role in supporting the weight of the excavator and guiding the track. There are many types of track rollers, including upper track rollers, lower track rollers, and track rollers. The upper rollers keep the upper part of the track in place, preventing it from sagging or derailing. The lower rollers support the weight of the machine and help distribute the load evenly across the track. The carrier rollers (also called track support rollers) are located between the upper and lower rollers, further enhancing the stability of the track assembly.
The carrier rollers are used to tension the track and keep it properly aligned. They are usually mounted on the front of the running gear and can be adjusted to ensure that the track is neither too loose nor too tight. Proper track tension is key to smooth operation, as a loose track can cause slippage and uneven wear, while a tight track can cause excessive stress on components and shorten their service life.

3. Drive sprockets

The drive sprockets are responsible for providing power to the track assembly. They are connected to the excavator's drivetrain and transfer the engine's rotational force to the track. As the sprockets turn, they engage the track links, causing the track to move. The design and size of the drive sprockets affect the speed, traction, and gradeability of the excavator. Generally, larger sprockets provide more torque and better traction, but may also reduce the machine's travel speed.

Main Frame and Structure

1. Frame Design

The main frame of an excavator is the core of the chassis. It is a large, rigid structure that supports the weight of the superstructure, engine and other components, as well as the loads generated during operation. The main frame is usually made of high-strength steel and is designed to withstand bending, torsion and impact forces.

Modern excavator frames are usually box-shaped, consisting of multiple welded steel plates with a rectangular or square cross-section. This design minimizes weight while ensuring high strength and rigidity. There are also multiple mounting points on the frame for connecting other chassis components, such as travel device components, slewing systems and hydraulic cylinders.

2. Structural Reinforcements

To further improve the durability and strength of the main frame, structural reinforcements are added at key locations. These reinforcements may include additional steel plates, gussets or ribs. For example, areas with high stress concentrations, such as near the connection points of the boom and dipper stick, are reinforced to prevent cracking and deformation. Reinforcements are also used in areas that are more susceptible to impact, such as the front and rear ends of the frame.

Excavator slewing system components

1. Slewing bearing

The slewing bearing, also known as a slewing bearing or turntable bearing, is a key component of the excavator slewing system. It connects the superstructure to the chassis and enables the superstructure to rotate 360 ​​degrees. The slewing bearing must be able to support the weight of the superstructure (including the engine, cab and attachments), as well as the forces generated during rotation and operation.
Slewing bearings are usually large round bearings with multiple rows of balls or rollers. They are designed to withstand high radial, axial and moment loads. The quality and durability of the slewing bearing are essential for the smooth and reliable operation of the excavator. To ensure its proper function and extend its service life, regular maintenance such as lubrication and inspection is required.

2. Slewing motor and gearbox

The slewing motor and gearbox work together to provide power for the rotation of the superstructure. The slewing motor is a hydraulic motor that converts hydraulic energy into mechanical energy. It provides the torque that rotates the superstructure at the required speed. The gearbox reduces the motor speed and increases the torque, allowing the excavator to swing smoothly and powerfully.
The swing motor and gearbox are controlled by the excavator's hydraulic system. The operator can adjust the swing speed and direction through the joystick in the cab. Proper calibration and maintenance of the swing motor and gearbox are required to ensure the accuracy and responsiveness of the swing system.

Summary of Excavator Components and Their Functions

In summary, the main undercarriage components of an excavator each play a vital and unique role in the function and performance of the entire machine. The travel gear components (including the track assembly, supporting rollers, carrier rollers and drive sprockets) provide the mobility and traction for the excavator to move and operate on different terrains. The main frame and its structural reinforcements provide the strength and support required to withstand the rigors of the operation. The swing system components (such as the swing bearing, swing motor and gearbox) enable the upper structure to rotate, allowing the excavator to reach and operate in different locations.

By understanding the functions of these components, operators can use the excavator more efficiently, and maintenance personnel can perform regular inspections and repairs to keep the machine in optimal condition. Whether in construction, mining or other heavy-duty industries, a well-maintained excavator with properly functioning undercarriage components is essential to maximize productivity, ensure safe operations and achieve cost-effectiveness.

FAQ:

1.What does the excavator hydraulic system do?

You use the excavator hydraulic system to move the boom, arm, stick, and bucket. This system gives power to lift, dig, and swing. You control the flow of oil with levers or joysticks. The hydraulic system makes your excavator strong and fast.

2.What is the function of the excavator bucket and its function?

The excavator bucket and its function help you scoop, carry, and dump soil or rocks. You attach the bucket to the stick. You can choose different bucket shapes for digging, grading, or trenching. The right bucket makes your work easier and faster.

3.How do you control the excavator boom and arm?

You use the controls inside the cab to move the excavator boom and excavator arm. Each lever or joystick lets you lift, lower, or swing these parts. Good controls help you dig, lift, and load with more accuracy and safety.
