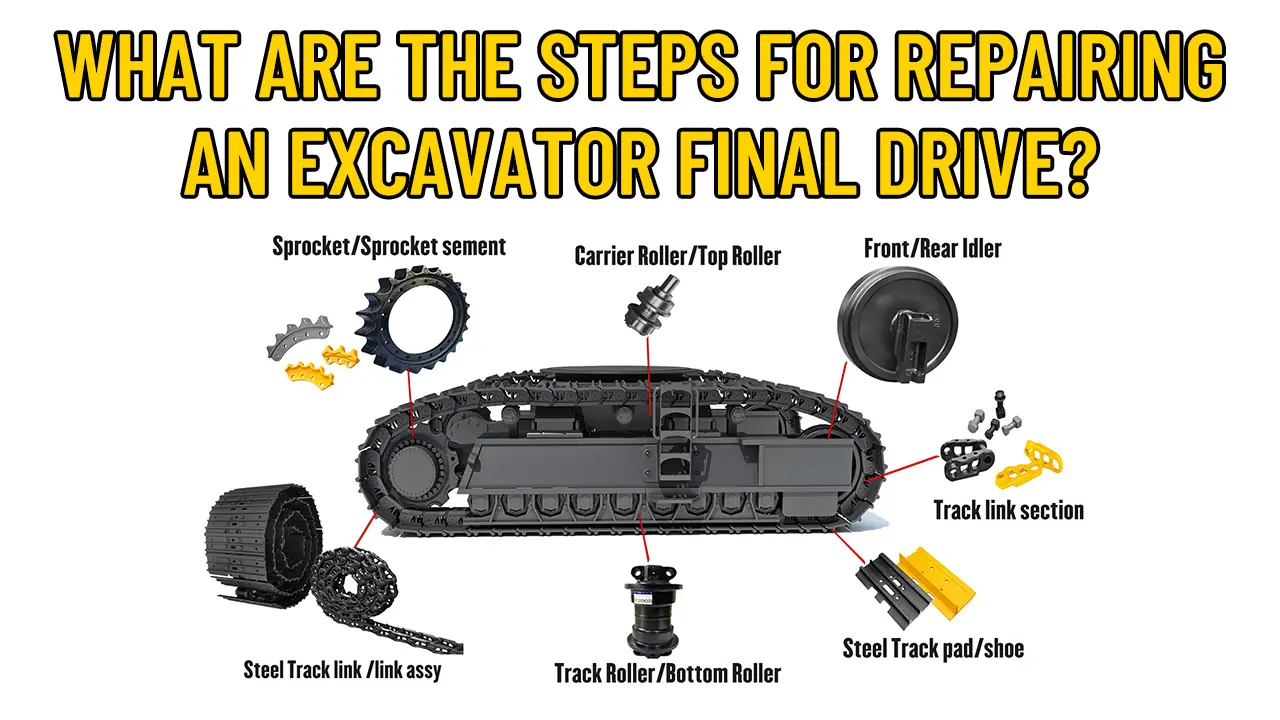

Preparation
1. Safety measures
Before performing any repair work on an excavator final drive, safety must be the primary consideration. First, park the excavator on flat, stable ground and apply the parking brake. Lower all working devices to the ground to relieve pressure from the hydraulic system. Disconnect the battery to prevent accidental starting. In addition, wear appropriate personal protective equipment, including safety glasses, work gloves, and steel-toed boots.
2. Gather necessary tools and parts
Prepare a complete set of tools for the repair process. You will need wrenches, sockets, torque wrenches, crowbars, and hydraulic pullers. As for parts, prepare new seals, gaskets, bearings, and any other parts that may need to be replaced based on previous inspections or common wear and tear. Also stock up on high-quality lubricants and cleaning solvents. Make sure you have a tidy workspace with enough space to place parts during disassembly and assembly.
Disassemble the final drive
1. Disconnect hydraulic and electrical connections
First carefully disconnect all hydraulic lines connected to the final drive. Place an oil pan underneath to catch any hydraulic oil spills. Use appropriate plugs or caps to seal the ends of the lines and the connections on the final drive to prevent contamination. If there are any electrical connections, such as sensors or solenoids, disconnect them according to the manufacturer’s instructions and mark each connection for reassembly.
2. Remove mounting bolts and brackets
Locate and remove the bolts that secure the final drive to the excavator frame. Some models may require additional brackets or braces to be removed first. Use a wrench or socket of the appropriate size to avoid slipping the bolts. After removing all bolts and brackets, carefully remove the final drive from the excavator using a crane or suitable lifting equipment. Place it on a sturdy workbench or clean, flat surface for further work.
Disassembly and inspection
1. Disassemble the final drive
First remove the housing of the final drive. This will expose the internal components, such as gears, shafts, and bearings. Use a crowbar or similar tool to carefully separate the housing to avoid damaging seals or other parts. Next, remove the gears and shafts one by one, noting their orientation and position. Some components may be secured by snap rings or retaining rings, which can be removed with pliers.
2. Thoroughly inspect components
Carefully inspect each component for signs of wear, damage, or fatigue. Inspect gears for chipping, excessive wear, or cracks. Inspect shafts for bends or nicks. Turn bearings to check if they turn freely; if they feel rough, play, or make noises when turned by hand, they most likely need to be replaced. Look for damaged or worn seals and gaskets, as these issues can cause leaks and final drive contamination.
Rebuilding Final Drives
1. Clean and prepare components
Before you begin a rebuild, thoroughly clean all components using a suitable cleaning solvent. Use a brush to remove dirt, debris, or old lubricant from hard-to-reach areas. Rinse components with clean water and then dry thoroughly with compressed air or a clean, lint-free cloth. This ensures that no contaminants will affect the proper operation of the rebuilt final drive.
2. Replace worn components
Based on the inspection results, replace all worn or damaged components with new original equipment (OEM) or high-quality aftermarket parts. Install new seals and gaskets to prevent leaks. When replacing bearings, use a hydraulic press or bearing puller to ensure proper installation to avoid damaging the new bearings or shafts.
3. Lubricate the Parts
During the rebuild process, apply the recommended lubricant to all moving parts. This includes gears, shafts, and bearings. Proper lubrication is essential to reduce friction, prevent wear, and ensure smooth operation of the final drive. Follow the manufacturer’s specifications for lubricant type and amount.
Reassembly and Testing
1. Reassemble the Final Drive
Begin reassembly in the reverse order of the disassembly steps. First install the shafts and gears into the correct position, ensuring alignment. Install the housing and tighten the appropriate bolts to the manufacturer’s specified torque with a torque wrench. Reinstall any snap rings or retaining rings. Connect the hydraulic and electrical components, referring to the marks made during disassembly.
2. Test the Final Drive
If possible, bench test the final drive before reinstalling it on the excavator. Connect the final drive to the appropriate power source and hydraulic source (if applicable) and run it at low speed to check for smooth operation. Watch for any unusual noises, vibrations, or leaks. If everything is normal, reinstall the final drive on the excavator in the reverse order of disassembly. Once installed, start the excavator and test the final drive in a controlled environment, gradually increasing loads and speeds to ensure it is operating properly.
