Excavators are heavy-duty workhorses built for rugged construction, mining, landscaping, and demolition sites, where they endure constant vibration, extreme hydraulic pressure, fluctuating temperatures, and constant exposure to dust, mud, and abrasive debris. At the core of every reliable excavator hydraulic system lies a set of unsung but critical components: excavator component seals. These small yet high-performance parts play a pivotal role in preventing hydraulic fluid leakage, blocking harmful external contaminants, maintaining stable system pressure, and protecting expensive moving components from premature wear, corrosion, and catastrophic failure. Below, we break down the key types of excavator component seals, their core functional roles, how to select the right seals for heavy-duty use, and why Kyotechs Machinery stands as a trusted global supplier of premium excavator seals.

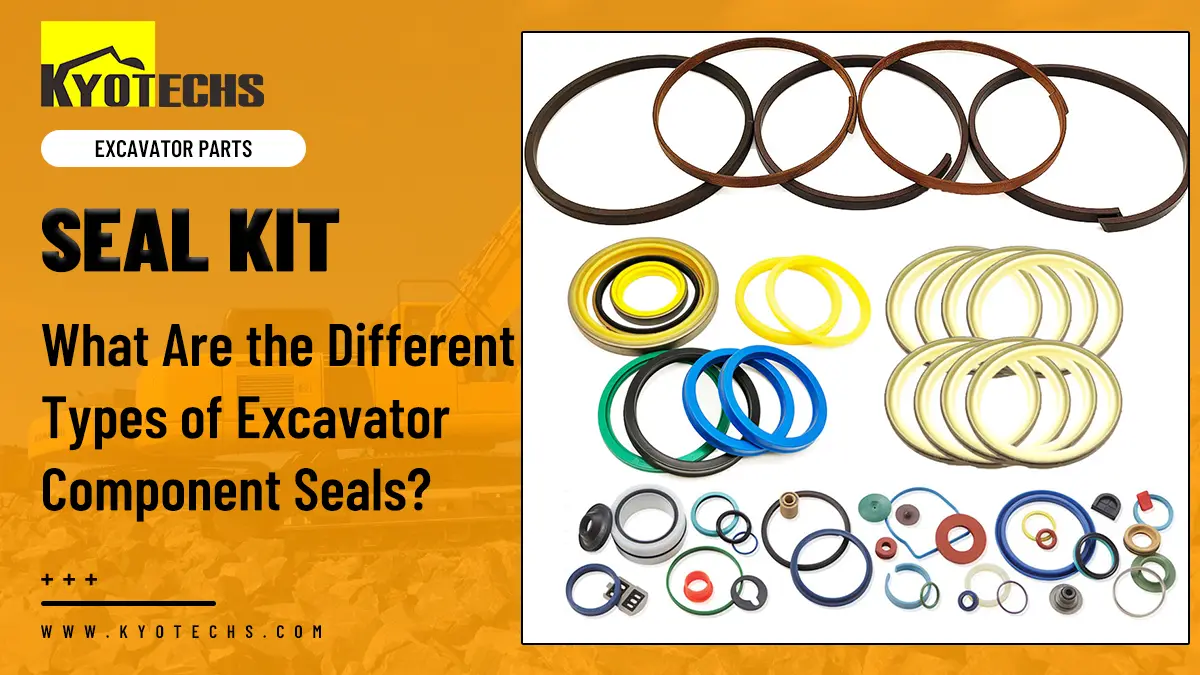

Types of Excavator Component Seals
Excavator seals are categorized mainly by their installation location, functional purpose, and structural design, with the vast majority used in critical hydraulic systems: boom cylinders, arm cylinders, bucket cylinders, swing cylinders, control valves, rotary joints, and hydraulic motors. Each seal type has a distinct job, and they work together as a unified system to create a fully sealed, efficient, and long-lasting hydraulic unit. Here are the most essential and widely used excavator component seals:
1. Piston Seals (Internal Seals)
Piston seals are mounted directly on the hydraulic cylinder piston, designed to seal the gap between the piston and cylinder bore. Their primary job is to prevent internal hydraulic fluid leakage between the two pressure chambers of the cylinder, ensuring consistent pressure buildup on either side of the piston. This pressure difference is what powers the extension and retraction of the cylinder, enabling the excavator’s digging, lifting, and swinging movements.
2. Rod Seals (Gland Seals / External Seals)
Rod seals are installed in the cylinder head, sealing around the reciprocating piston rod to stop external hydraulic fluid leakage and retain system pressure.
Rod seals operate under dynamic conditions, moving with the rod as it extends and retracts, so they require low friction, high wear resistance, and excellent pressure tolerance. Popular variants include U-ring, V-ring, and compact combined rod seals, often paired with buffer seals for extra protection in high-pressure applications.
3. Wiper Seals (Dust Seals / Scrapers)
Wiper seals are the first line of defense for the entire hydraulic cylinder system, mounted on the outermost part of the cylinder head. Their core role is to scrape off dust, dirt, mud, water, and other external contaminants from the piston rod surface as it retracts into the cylinder.
Without effective wiper seals, abrasive particles would enter the cylinder, scratch the rod and cylinder bore, damage internal seals, and cause rapid wear to precision components.
4. Buffer Seals (Back-up Seals)
Buffer seals, also referred to as back-up seals, are positioned directly behind the rod seal, specifically designed to absorb sudden pressure spikes and heavy shock loads that occur during rapid cylinder movement, heavy digging, or sudden load shifts.
Buffer seals reduce the pressure impact on the main rod seal, extend its service life, and maintain stable sealing performance in heavy-duty, high-impact excavator tasks like rock digging or heavy lifting. They are typically made from elastic, high-resilience materials to handle repeated shock without deformation.
5. Wear Rings & Guide Rings (Bearing Rings)
While not classified as traditional fluid-sealing rings, wear rings and guide rings are indispensable supporting components that directly boost overall sealing efficiency and component lifespan. They are fitted onto the piston and rod to prevent harmful metal-to-metal contact between the piston, rod, and inner cylinder bore.
By centering the piston and rod, these rings eliminate lateral movement and friction, reducing uneven wear on piston and rod seals.
6. O-Rings & Backup Rings
O-rings are universal, circular cross-section seals used for static sealing applications in excavators, such as hydraulic pipe connections, valve blocks, cylinder end caps, and flanges. They create a tight, reliable seal under pressure and are easy to install and replace.
7. V-Ring Seals (V-Packings)
V-ring seals, or V-packings, are multi-lip, stacked seals used in extreme high-pressure and heavy-load excavator applications, such as large mining excavators or heavy-duty demolition machines. They consist of multiple V-shaped rings that work together to create a tight seal, with each lip reinforcing the sealing force as pressure increases.
Functions of Excavator Seals
Every type of excavator seal works in tandem to support overall machine performance, durability, and operational efficiency, with six core, interconnected functions that keep hydraulic systems running smoothly:
- Prevent Hydraulic Fluid Leakage: The primary function of all dynamic seals (piston, rod) is to contain hydraulic oil, eliminating internal and external leaks that waste fluid, reduce power, and contaminate work sites.
- Maintain Hydraulic Pressure: Seals lock in pressure within the hydraulic system, ensuring the excavator delivers consistent digging force, lifting capacity, and swing speed—critical for productive operation.
- Block Contaminant Ingress: Wiper seals and dust seals keep dirt, mud, water, and debris out of hydraulic cylinders, protecting precision components from abrasion and corrosion.
- Reduce Friction & Wear: High-quality seals minimize friction between moving parts, while wear rings prevent metal contact, extending the life of cylinders, rods, and other expensive components.
- Absorb Shock & Pressure Spikes: Buffer seals and heavy-duty V-packings absorb sudden loads, protecting the entire hydraulic system from damage during rugged use.
- Extend Machine Lifespan: By preventing leaks, contamination, and wear, quality seals reduce maintenance frequency.
Choosing Excavator Seals from Kyotechs Machinery
Not all excavator seals are built to the same standard, and cutting corners with low-quality, generic seals often leads to bigger expenses down the line. While cheap seals may seem budget-friendly upfront, they wear out rapidly, fail under high pressure, and trigger unexpected breakdowns that halt operations. When it comes to selecting reliable, long-lasting excavator seals, Kyotechs Machinery is a top choice for contractors, fleet managers, repair shops, and heavy equipment operators worldwide, thanks to these unbeatable advantages:
1. Premium Material Selection
Kyotechs Machinery uses only industrial-grade materials tailored for excavator applications: wear-resistant polyurethane (PU) for dynamic seals, oil-resistant nitrile rubber (NBR) for standard use, high-temperature FKM for extreme heat environments, and reinforced composite materials for wear rings. All materials resist aging, oil degradation, and abrasion, perfect for rugged construction sites.
2. Precise Fit for All Major Excavator Models
Kyotechs offers custom and standard seals compatible with all leading excavator brands, including Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Kobelco, and more. Each seal is manufactured to exact OEM specifications, ensuring easy installation, perfect fit, and zero compatibility issues—no modifications needed.
3. Complete Seal Kits for Easy Replacement
Instead of sourcing individual seals, Kyotechs provides complete excavator seal kits for boom, arm, bucket, and swing cylinders, including all required seals, wipers, buffer rings, and wear rings.
4. Heavy-Duty Design for Harsh Conditions
Kyotechs seals are engineered for extreme working conditions: high hydraulic pressure, wide temperature ranges, constant vibration, and exposure to mud, dust, and rock debris. They resist extrusion, tearing, and premature wear, delivering consistent performance even in the toughest mining and construction environments.
Conclusion
Excavator component seals are truly the unsung heroes of heavy machinery performance, with every type — from piston seals and rod seals to wiper seals, buffer seals, and wear rings — fulfilling a non-negotiable role in sustaining hydraulic efficiency, stopping leaks, and shielding high-value components from damage.
For seals that deliver consistent performance, withstand harsh job site conditions, and fit perfectly with leading excavator models, Kyotechs Machinery offers industry-leading quality, reliable durability, and a perfect fit for every application.
Whether you need replacement seals for routine maintenance or complete seal kits for overhauls, Kyotechs has the right solution to keep your excavator running smoothly and efficiently.
